Tuesday, April 1, 2014

21-06, crotch strap brackets

Not much to write about, just a straightforward page of metal work.  This page was about preparing and installing brackets for the crotch strap of the seat belt system.  The seats are based on 4 ribs, of which 3 are now connected.  The last part of the page was to prepare hinges for attaching seat pans.


IMG 3024Left Crotch Strap Bracket

IMG 3025

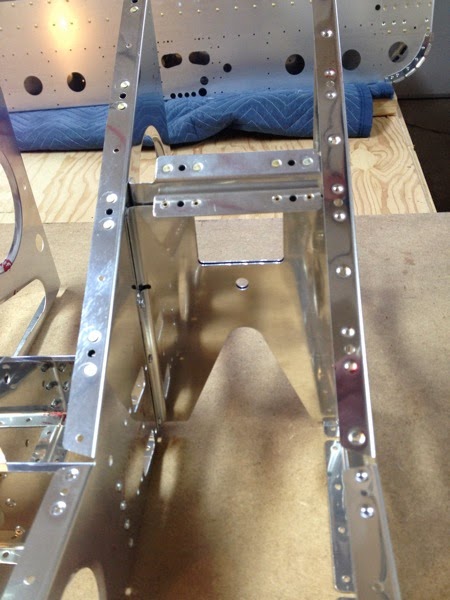

 Right Crotch Strap Bracket

IMG 3023

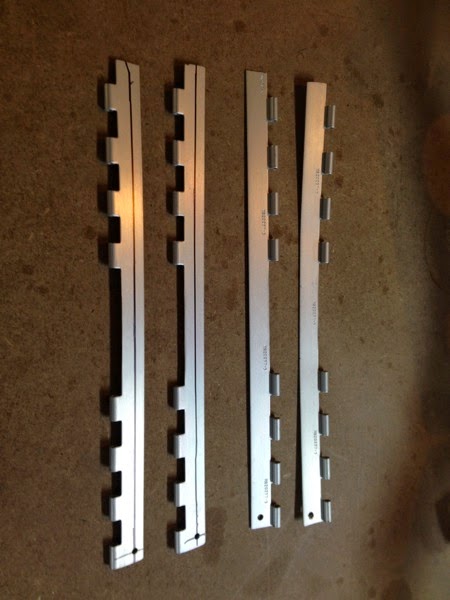

Seatback Hinge Prep
